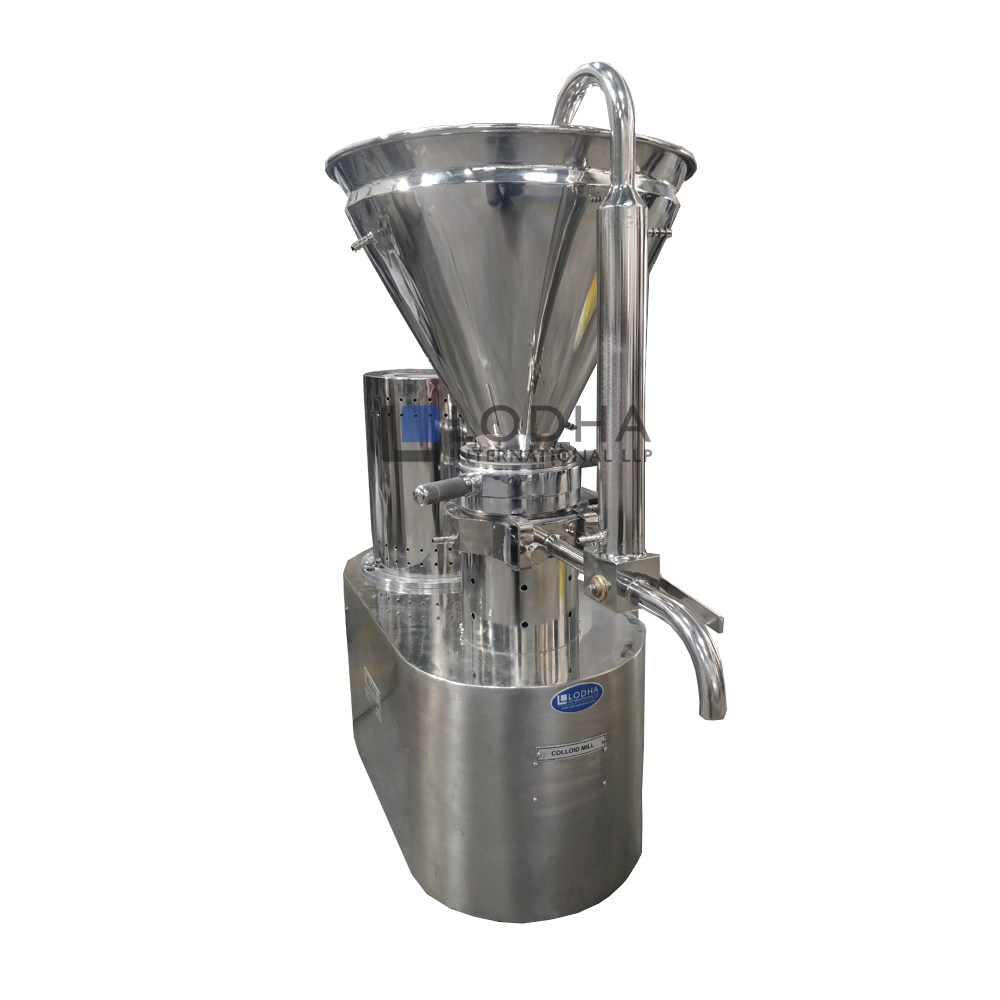

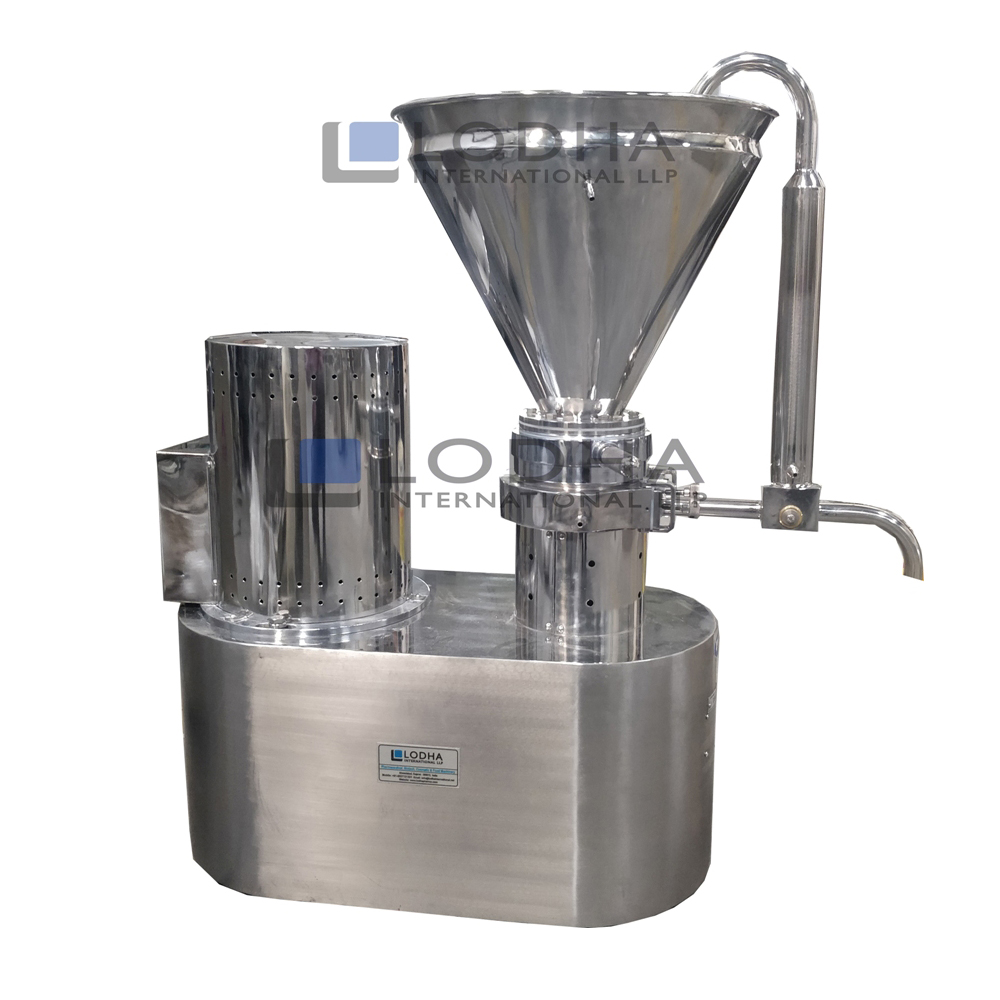

Colloid Mill
Colloid Mill

Colloid Mill

₹125,000.00
Category:

Colloid Mill allows achieving superfine grinding results along with simultaneous emulsifying, homogenizing and dispersing in single process cycle. The machine provides high capacity output with only minimum space requirements. This makes it best machines of its kind in the industry. The machine is also rather easy to clean. In fact, it can be cleaned conveniently by using suitable solvents or just flushing water. The machine has got robust contact parts made from high quality stainless steel. Moreover, the various operating parts can be dismantled and assembled easily.

The Lab Colloid Mill is used in laboratories for research and development due to which it is also known as R&D Colloid Mill. It is also known by the names Mini Colloid Mill, Small Colloid Mill and Compact Colloid Mill due to its small and compact size.

Salient Features Of Colloid Mill

  • Unique for small volume micronization.
  • Modified design of stator-rotor assembly.
  • Totally leak-proof design.
  • Available in plain, water jacketed & flame proof options.
  • Special design facilitates adjustment of grinding gap by an exterior screw by means of handle even during operation.
  • Unique for Grinding, Homogenizing, Emulsifying, Dispersing, Mixing and Extracting.
  • Versatile Machine for Homogenizing and Milling Up to 5 to 10 Micron Particle.
  • Extended bearing housing specially designed to facilitate fine adjustments of bearing clearances or backlash to avoid metal to metal contact of rotor and stator.
  • This unique design provides smooth and consistence all round performance and long life of rotor and stator.
  • The colloid mill machine is used as herbal extractor machine, in food processing, and pharmaceutical lab also.
  • Quick and easy cleaning by flushing water or suitable solvents.
  • It is mainly used in pharmaceutical purpose for the preparation’s colloidal dispersions, suspensions, emulsions and ointments.
  • Colloidal mill is utilized in a number of industries including, food and beverage, pharmaceuticals and chemicals.
  • Colloidal mill is ideal for small, medium and large-scale tablet batching systems. The colloid mill is the most efficient system for dispersion and homogenization of raw material.
Model LI-CM V LI-CM H
Model Type Vertical Lab Horizontal/Vertical
Output Litre/hour 10 to 150 145 to 1500
Jacket Water Jacketed Water Jacketed
Grinding Accuracy 5 to 10 Micron 5 to 10 Micron
Hopper Capacity 20 Litres 20 Litres
Motor Type Flange Mounted Flange Mounted
Motor 1 HP X 2850 RPM, 3 Ph. x 440 V., x 50Hz. A.C. Supply 3 HP X 2850 RPM, 3 Ph. x 440 V., x 50Hz. A.C. Supply
Motor Coupling Belt Driven Belt Driven
Floor Space (mm) 400 x 510 365 x 720
Net Weight (Approx.) 95 Kgs. 160 Kgs.
